Excellent Performance

The continuous fiber reinforcing materials(CFRM) introduced here are composite materials that combine the high strength, elasticity and heat resistance of carbon fiber, aramid fiber and glass fiber with epoxy resin and vinyl ester resin.
CFRM have high corrosion resistance and show promise as materials that will be able to reduce the maintenance and repair costs of concrete structures.
Their use is expected to increase along with the wider acceptance of the lifecycle cost (LCC) .

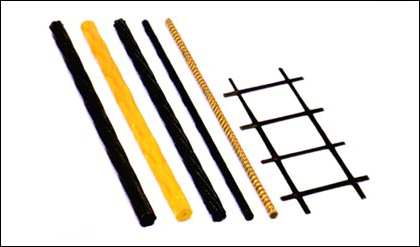

CFRM, as shown in the below photo, can be formed freely into rods, braids, strands and grids, according to their intended application.

Properties of CFRM


Carbon(CFRP) Aramid(AFRP) Glass(GFRP) Steel strand Steel rebar
Specific gravity - 1.5 1.3 1.7~1.9 7.85 7.85
Tensile strength N/mm2 1,900~2,300 1,400~1,800 600~900 1,700~1,900 490
Young's modulus kN/mm2 130~150 50~70 30 200 210
Elongation % 0.6~1.9 2~4 2 6 10
Relaxation ratio % 1.5~3 5~15 10 1~2 -
Coefficient of
thermal expansion		 10-6/ oC 0.6 -2~-5 9 12 12
Durability - good good good poor poor
Non magnetism - yes yes yes no no
